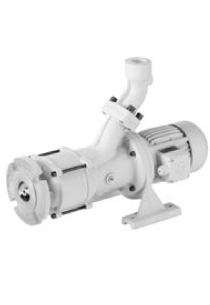

SBA141, 142, 143 – Axial/Semi-open impellers
Horizontal End-Suction Pumps are centrifugal inline pumps with a compact design where the impeller is mounted onto the extended motor shaft. These pumps are not self-priming and must be gravity fed. All pumps are equipped with a single mechanical seal. Upon request a second mechanical seal is available to allow for dry-running (-GD).
This pump series is designed for horizontal installations next to a tank and for pumping air entrained coolant fluids, such as water-soluble coolants or cutting oils, as they occur in high speed turning, milling or grinding applications.
The SBA pumps are equipped with the user-friendly (SAE) flange connection which allows for either vertical or horizontal pipe connection and the connection of a pressure gauge with G ¼.
For more information see mechanical features within the technical information section.
| Construction | |
| Pump body | Cast iron |
| Cover | Cast iron |
| Impeller axial | Cast steel |
| Impeller radial | Cast steel |
| Shaft | Steel |
| Mechanical seal | SiC |
| Noise level | |
| SBA141…SBA142 | 64 dBA |
| SBA143 | 68 dBA |
Types of fluid
Kinematic viscosity
Pumping temperature
